How do I know if the Bluesound player is using Ethernet or wireless network connection?

Check Network Connection

To confirm if the Bluesound player is connected to the network using a wireless or ethernet connection, perform the following steps:

Android/iOS - Check Network Connection

1. Launch the BluOS Controller app, navigate to the Players tab , and select the required Bluesound Player.
2. Tap the Home tab > Settings button .
3. Under the Help & Support section, tap Diagnostics.

Windows/macOS - Check Network Connection

1. In the BluOS Controller App, select the Player Drawer and select the required Player.
2. Under the left Navigation Drawer, select Help > Diagnostics.

Wireless connections

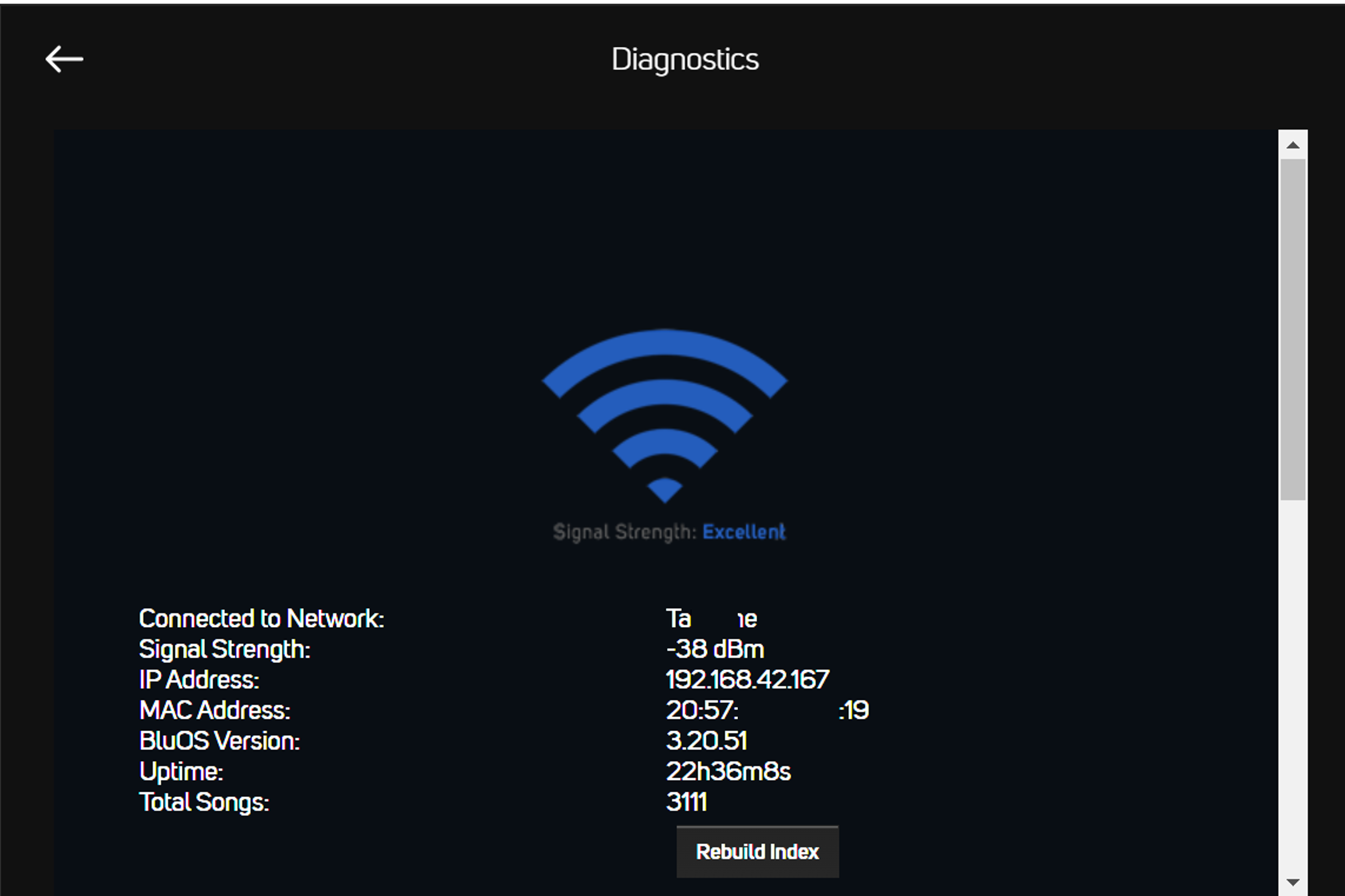

The color-coded Signal Strength indicator, Network name, and dBm reading are displayed along with the IP Address of the network.

Ethernet connections

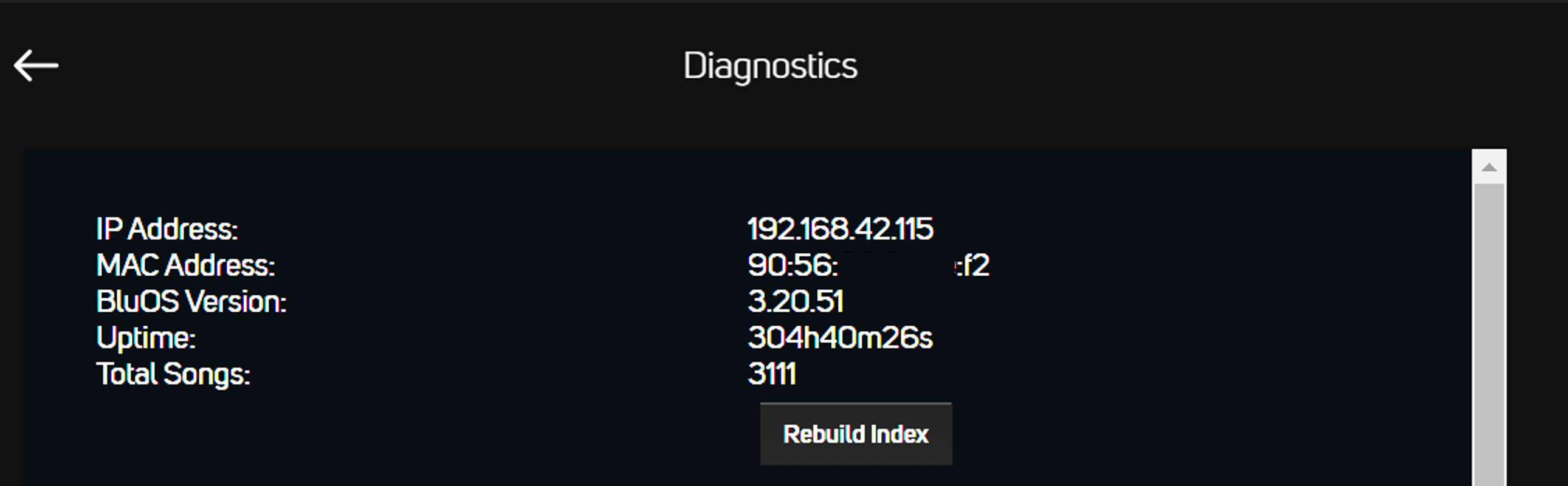

Only the IP Address of the network is displayed.

Notes:

• When an Ethernet connection is available, the player connects to the network using the wired connection by default.
• Bluesound players cannot connect using both wired and wireless connections simultaneously.

Wireless Connection	Ethernet Connection
